Description

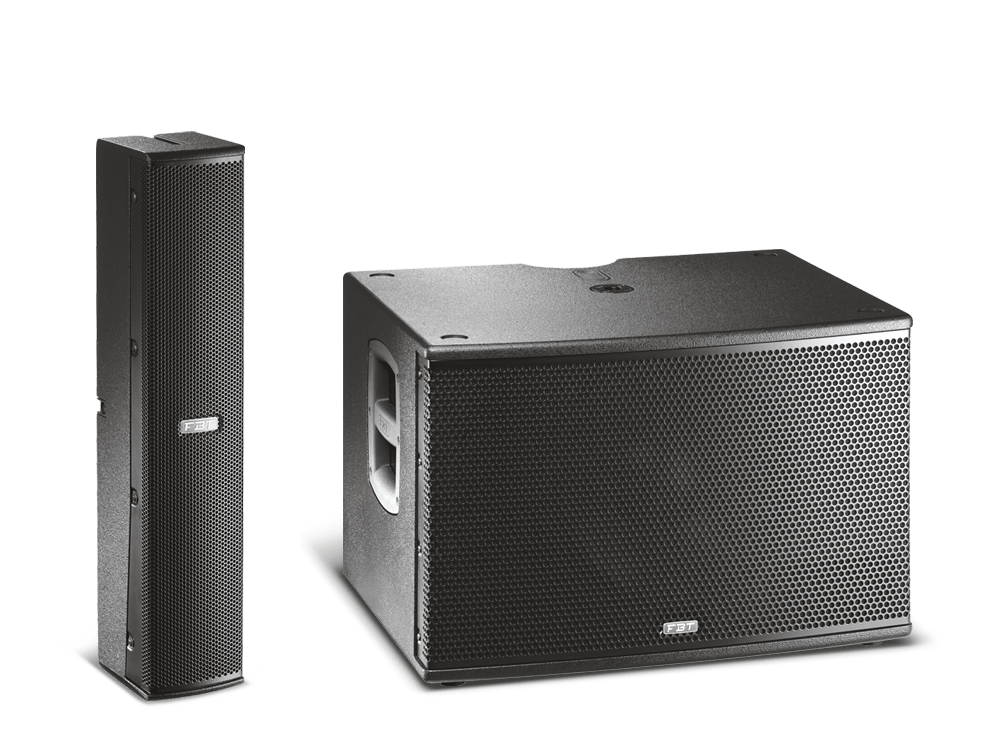

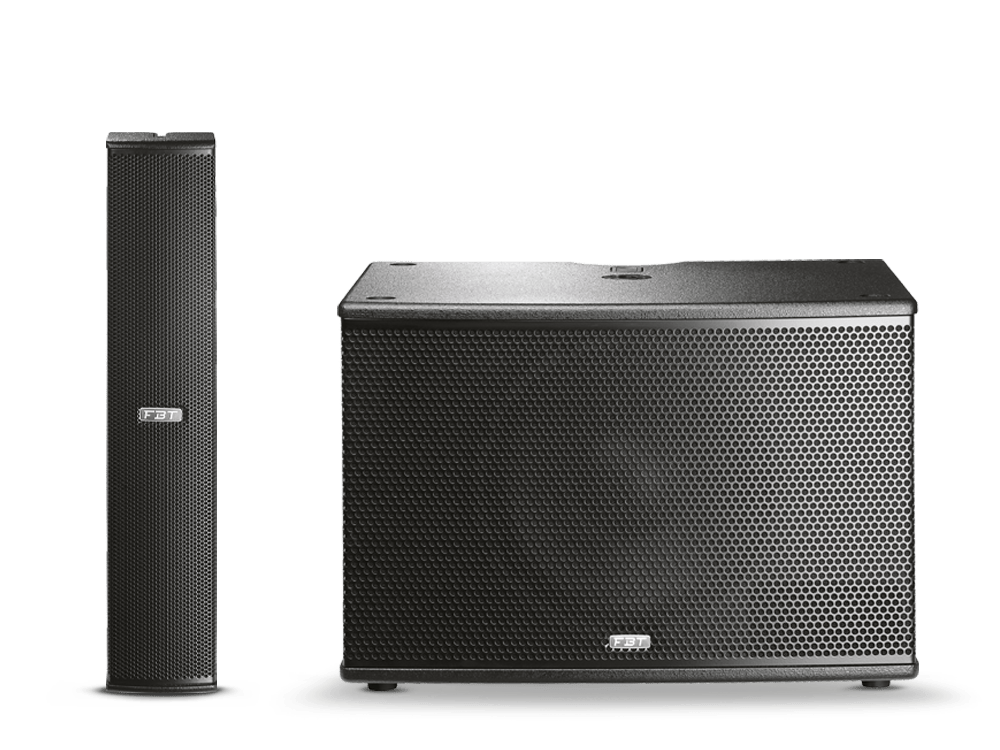

The Vertus CS 1000 is a compact, two-way bi-amplified column line array with powerful and balanced sound. It is the perfect partner for those who are looking for a system that is easily transportable, suitable for intensive use and that will boost the quality of the listening experience. The Vertus CS 1000 consists of a two-way passive bi-amplified line array and a subwoofer, both equipped with high-quality, durable birch plywood cabinets.
TOP & SUB

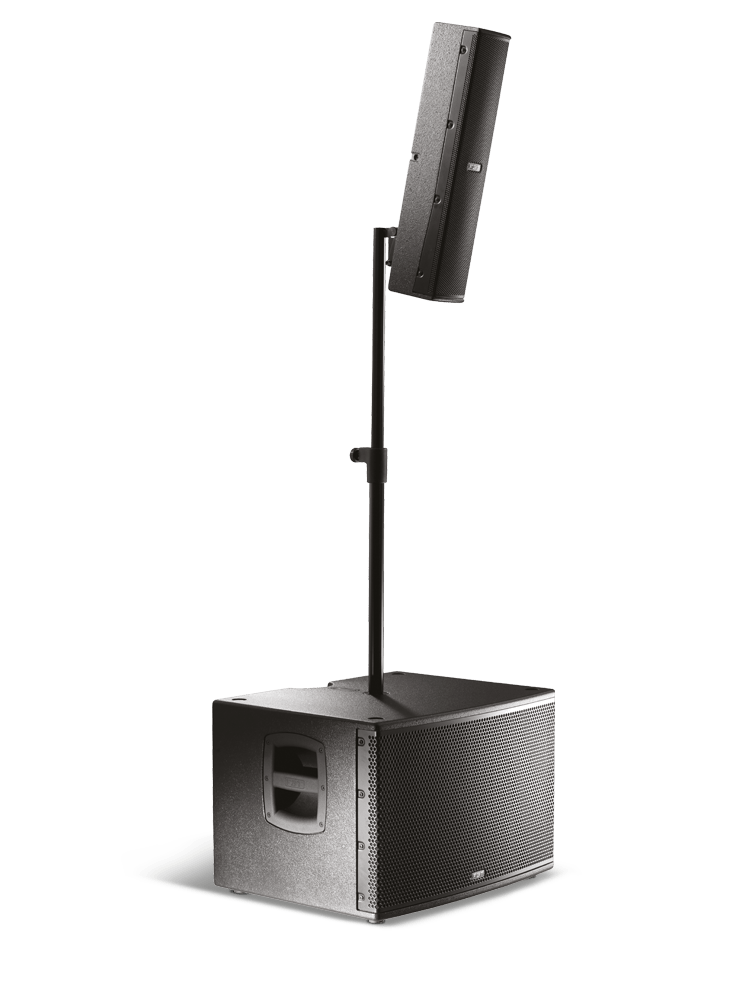

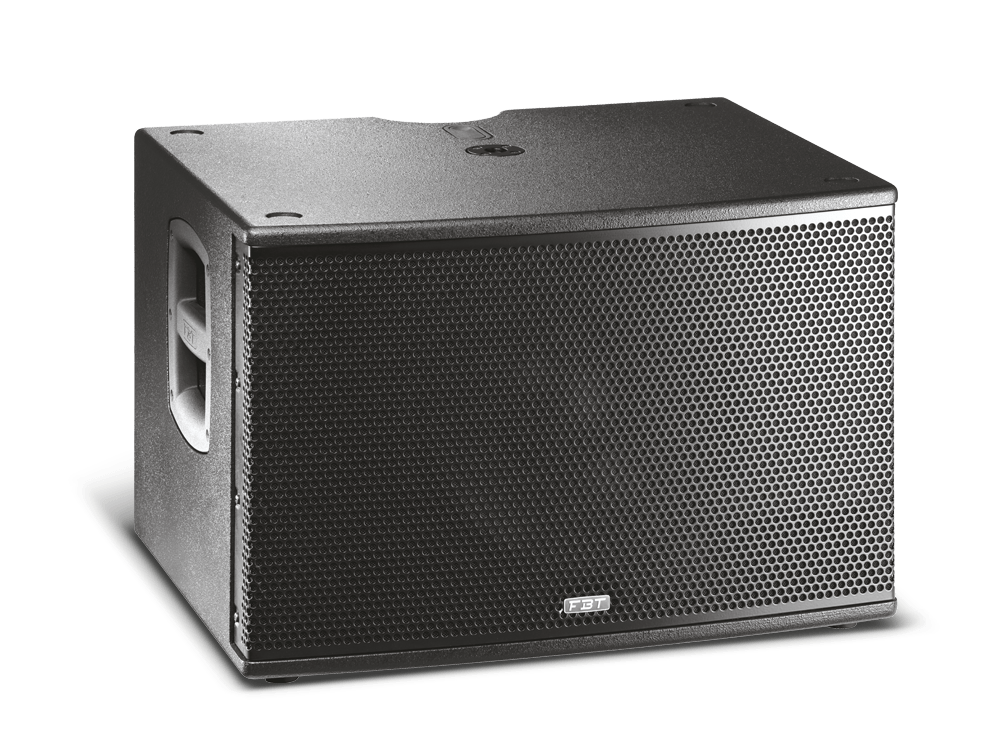

Thanks to its six custom 70mm (3″) neodymium full-range woofers with a 20mm (0.75″) high-efficiency voice coil, it can ensure a sound dispersion of 110°H x 30°V, with a frequency response from 40Hz to 20KHz. The satellite is also equipped with a hooking system for optional accessories that allow extending the length of the line array by coupling two satellites one above the other or making suspended wall installations. The custom 320mm (12″) subwoofer with a 64mm (2.5″) high-excursion bass-reflex voice coil is equipped with an aluminum die-cast handle with rubber inserts, an M20 support for a specific satellite support pole composed of 3 modules screwed on top of each other, and a joint that allows vertical inclination.
LIGHTWEIGHT, POWERFUL & PRATICAL

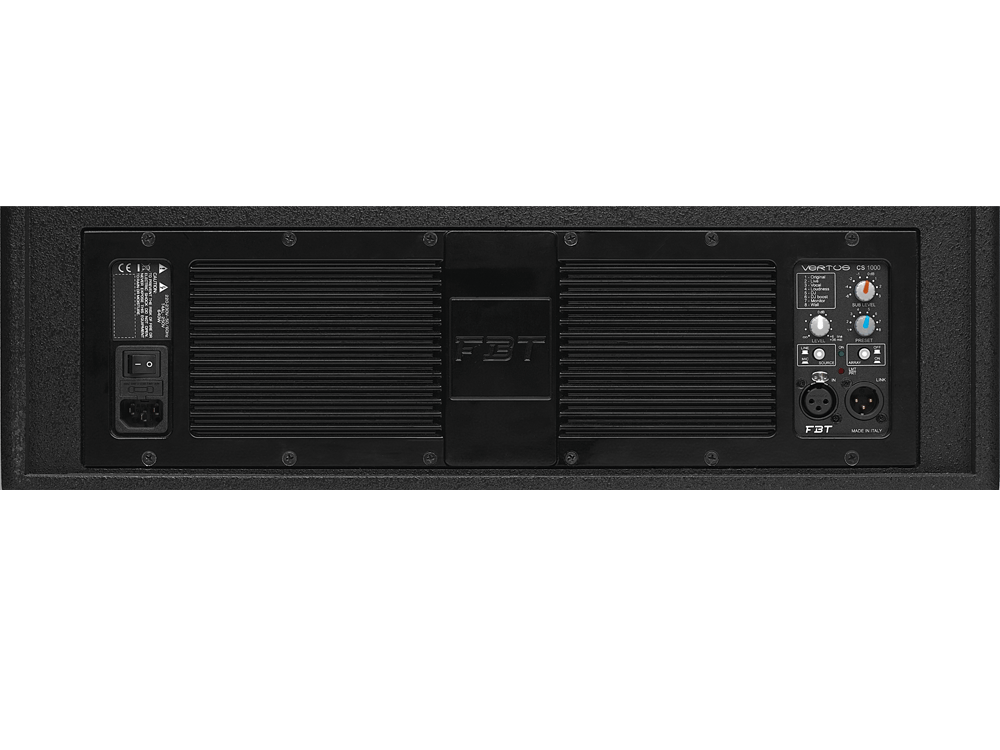

The system features Class D amplification, delivering 600W RMS for the LF section and 400W RMS for the HF section, powered by a switching mode power supply. A built-in DSP processor offers 8 EQ presets, ensuring optimized sound performance across a wide range of applications. The control panel includes master volume, preset selection, satellite volume, high-pass filter (HPF), status LED indicators, XLR input and link, and a Neutrik SPEAKON output for connecting the satellite column.

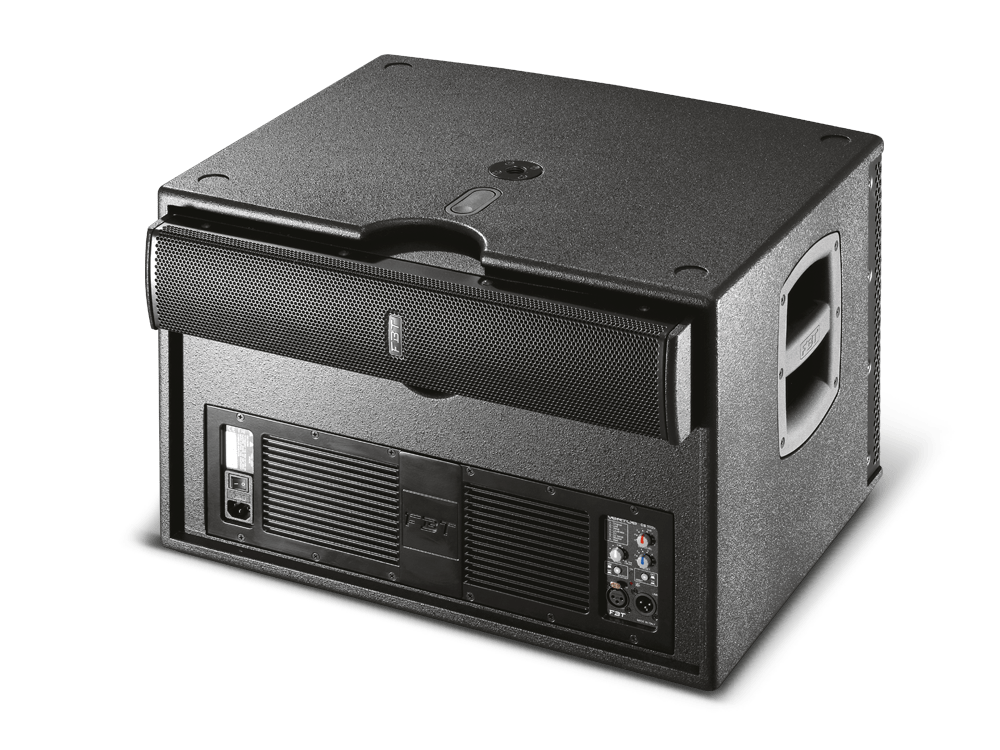

The Vertus CS1000 is easily expandable for a total power of 8000W peak (stereo system composed of 4 x Vertus CS1000) thanks to the modularity of the system, which allows doubling the sub and satellite to form a single system through optional accessories. For added convenience, the satellite mounting pole and the column itself are fully housed within the subwoofer cabinet. A secure locking mechanism ensures safe and easy transport by holding the satellite firmly in place.
- Configuration: 2 way
- Low Frequency Woofer: 1 x 12” – 2.5” VC
- Mid-High Frequency Driver: 6 x 3” – 0.8” VC
- Built-in Amplifier LF/HF: 600 – 400W RMS
- Maximum SPL: 129dB
- Material: Baltic birch plywood
Technical Specifications
Code: 640 VA
Built-in amplifier LF/HF: 600/400 W RMS
Built-in amplifier peak LF/HF: 1200/800 W
Frequency response: 40Hz – 20KHz -6dB
Low frequency woofer: 12 – 2.5 coil inch
High frequency driver: 6 x 3 – 0.8 coil neodymium inch
Maximum SPL cont/peak: 125/129 dB
Dispersion: 110° x 30° H x V
Input impedance: 22 Kohm
Crossover frequency: 180 KHz
Ac power requirements: 640 VA
Input connector: XLR with loop
Power cord: 5/16.4 mm/inch
Net Dimension (WxHxD): satellite 105x530x120 / 4.13×20.86×4.72 Subwoofer 565x373x450 / 22.24×14.68×17.71 mm/inch
Net weight:
Satellite 3.5/7.71 Subwoofer 22.4/49.38 kg/lb
Transport Dimension (WxHxD):
695x473x580 / 27.36×18.62×22.83 mm/inch
Transport weight:
33.5/73.85 kg/lb
