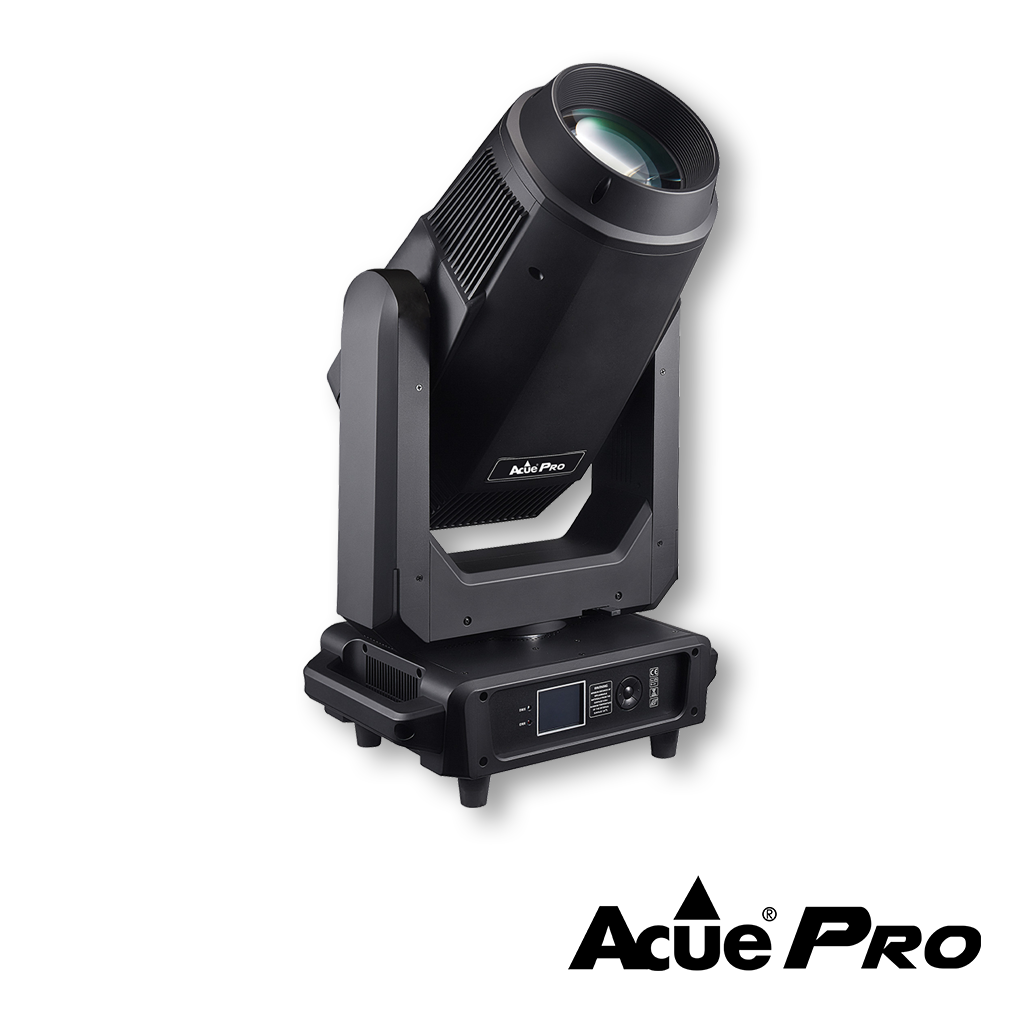

Extreme 1000 Hybrid Package

The Acue Extreme 1000 hybrid is our flagship full function professional moving head fixture. It is the largest fixture in the Extreme family and is packed with features not available in any other fixture.

It is a full feature hybrid fixture comprised of a beam, a spot and a wash moving + framing head all in one. The fixture utilizes a 900W (50,000 Lumens) white LED as its light source. The Extreme 1000 feature a 4 flag magnetic locking framing system allowing for smooth and seamless framing. The Extreme 1000 also features a seamless CMY color filter system as well as a CTO control system, making it the perfect fixture for large scale venues and theaters alike.   The Extreme 1000 is sold as a single unit including a custom road case for 1 unit.

---



Light Source	900W White LED Engine. 20K Hour lifetime. 9500K Color Temperature.
DMX Channels	39 DMX channel modes
Pan/Tilt Control	540˚ x 270˚ 16 bit control
Dimming	0% - 100% Linear dimming control 16-bit
Shutter	3 Shutter modes. Strobe, Pulse, & Random Flash
Color Wheel	7 Colors + open + CMY color engine + CTO
Gobo Wheel	2 Gobo wheels, 10 Static + 6 Rotating + full framing with 180˚ rotation + animation wheel
Prism	4 facet rotating prism
Zoom	Linear automatic zoom control 5˚ - 50˚
Focus	Precise mechanical focus control
Frost	Linear frost control
Iris	Mechanical iris control
DMX Input	3-pin & 5-pin DMX input/output RDM
Power Input	100-240V 50/60Hz Powercon input
Total Power Draw	1100W
