Description

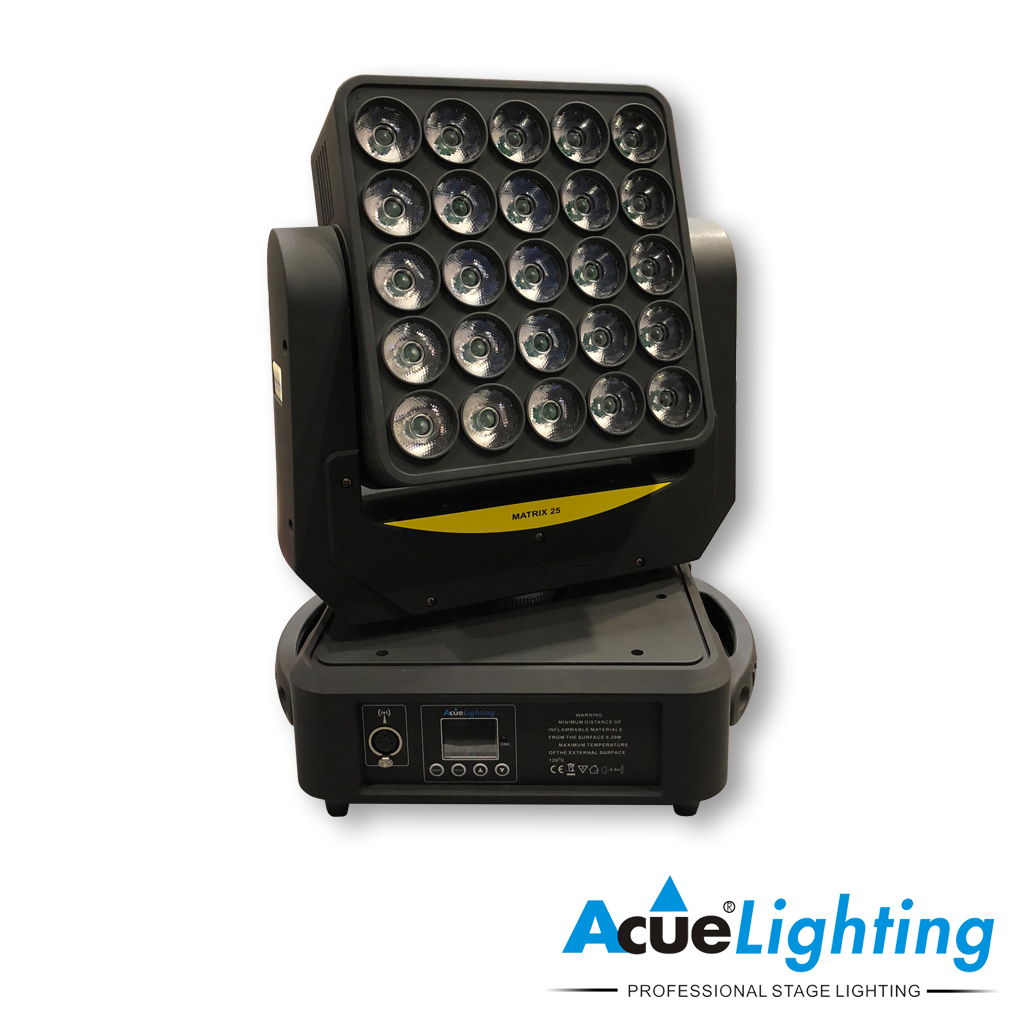

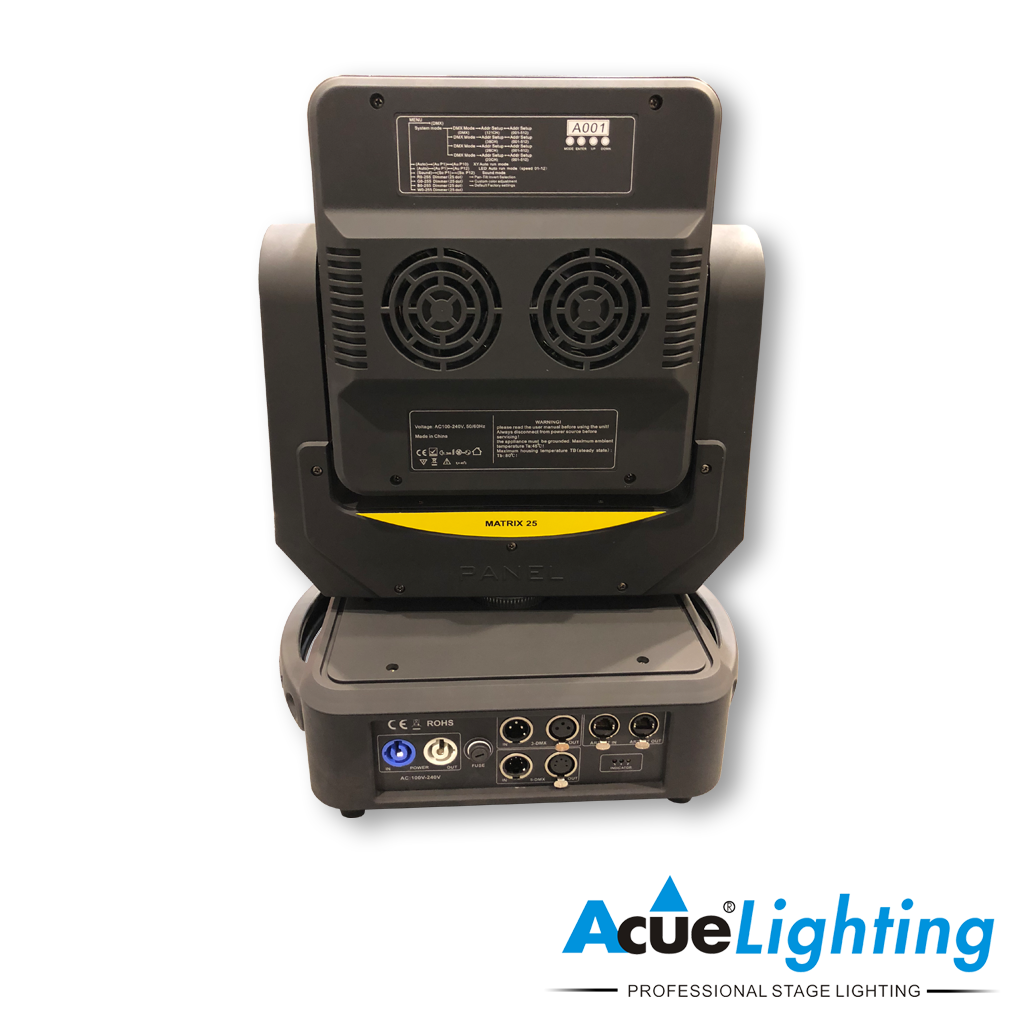

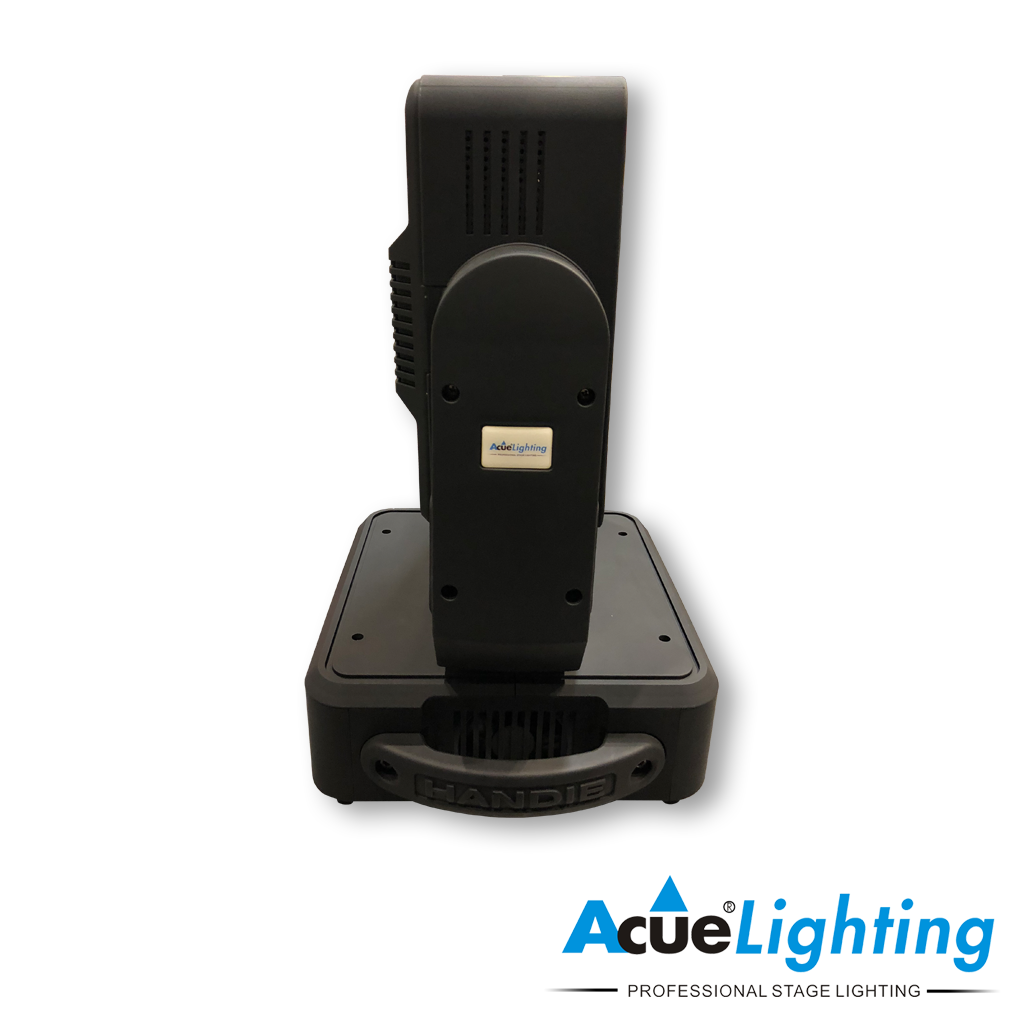

The Acue Lighting Matrix 5×5 360˚ is a powerful LED based moving head fixture. It houses 25 powerful 10W RGBW Osram LED’s. The Matrix 5×5 360˚ features full pixel-mapping capabilities along with unlimited pan/tilt rotation. Due to the amount of DMX channels we have added built in ART-Net in & out capabilities. The Matrix 5×5 360˚ is sure to be the perfect “WOW” effect on any stage.
- The Matrix 5×5 360 is sold as a package only, which includes two fixtures and a flight case.
| Light Source | 25x12W RGBW Osram LEDs |
| Operating Modes | DMX, Auto-Program, Sound Active |
| DMX Channels | 20, 26, 38, & 121 Channels modes. 3-pin DMX in/out, Art-net ethernet in/out |
| Pan | Unlimited Rotation |
| Tilt | Unlimited Rotation |
| Dimmer | 0-100% Linear dimmer control for each pixel |
| Shutter | Shutter strobe adjustable by DMX control |
| Total Power Draw | 300 Watts |
| Input Voltage | 110-220V AC 50/60hz Power-Con Input/Output |
| IP Rating | IP 20 (indoor use only) |
