Description

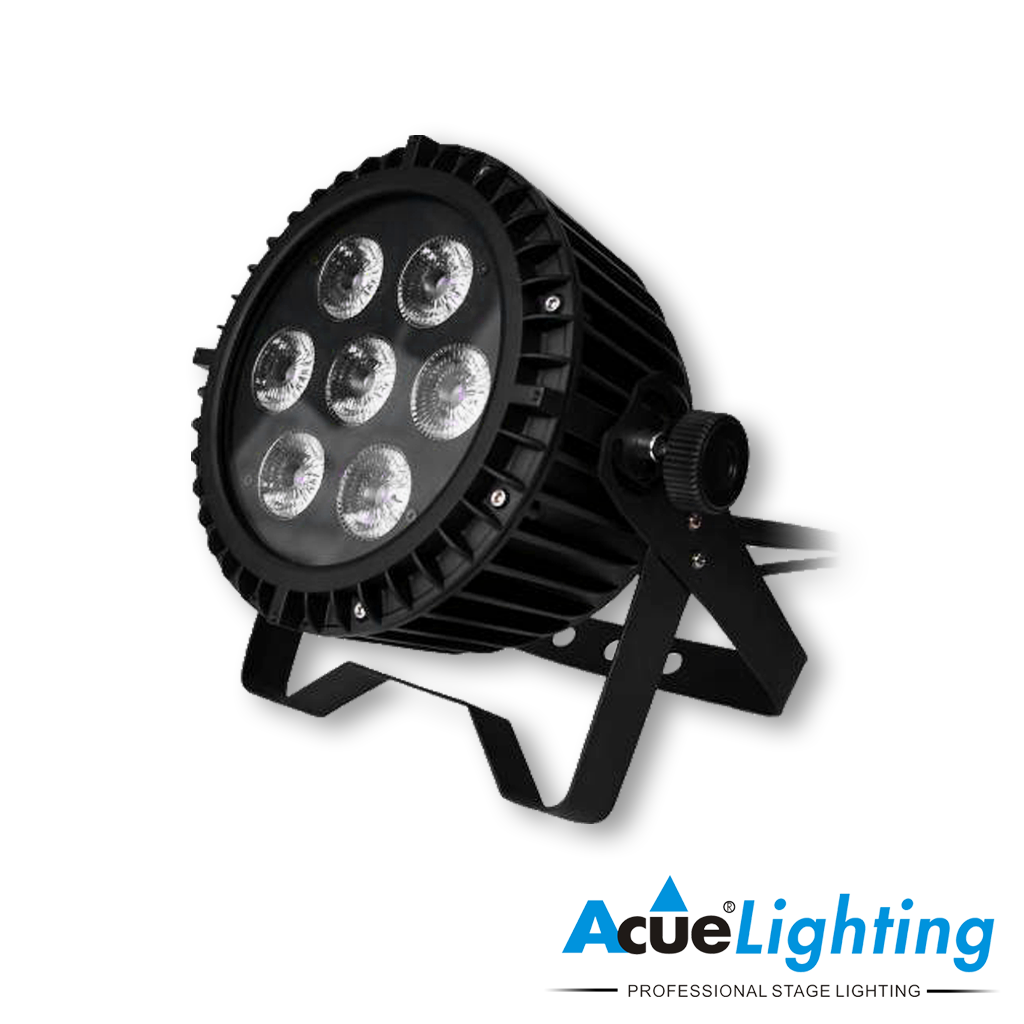

The Magic 7 IP Par is the smallest of our outdoor IP rated fixtures. The fixture features 7x10W RGBWW LEDs (red, green, blue, warm white). It is fitted with 45˚ lenses allowing for a perfectly even color wash. The Magic 7 IP Par has multiple operation modes including DMX, sound, auto-program and master/slave modes. All the power and DMX connections are IP rated as well.
- The Magic 7 IP Par is sold individually and as a package. The package includes six fixtures and a flight case. Please select an option above.
| Dimmer |
0-100% Linear Dimmer control by DMX or Manual |
| Shutter |
Shutter strobe speed control via max or manual |
| Total Power Draw |
80 Watts |
| Input Voltage |
110-220V Ac 50/60Hz |
| IP Rating |
IP 65 (rated for indoor or outdoor use) |
| Light source |
7x10W RGBWW Red, Green, Blue, Warm White LEDs |
| Operating Modes |
DMX, Auto Program, Master/Slave |
| DMX Channels |
8 Channels |
| Connection Plugs |
IP 65 rated power in/out, IP 65 rated data in/out |
Documentation
Manuals, spec sheets, and DMX channel charts.
About
The Acue Magic 7 IP RGBWW is a compact professional IP65-rated outdoor LED par designed for concerts, architectural lighting, outdoor events, weddings, theaters, stages, and permanent installations. Each fixture uses 7 x 10W RGBWW LEDs combining red, green, blue, and warm white output, while 45° lenses provide an even broad color wash. Its compact dimensions make it particularly valuable for installations where physical space is limited but professional outdoor-rated color mixing is still required.
Operating modes include DMX, Auto Program, and Master/Slave, using 8 DMX channels. The fixture supports 0–100% linear dimming, adjustable shutter/strobe, approximately 80W total power consumption, and 110–220V AC, 50/60Hz input. All power and data connections are IP65 rated, matching the fixture's IP65 indoor/outdoor enclosure. The Magic 7 IP is available individually or as a package containing six fixtures and a flight case.
